RoxcBreaker Model 1850IPS
1850 IPS

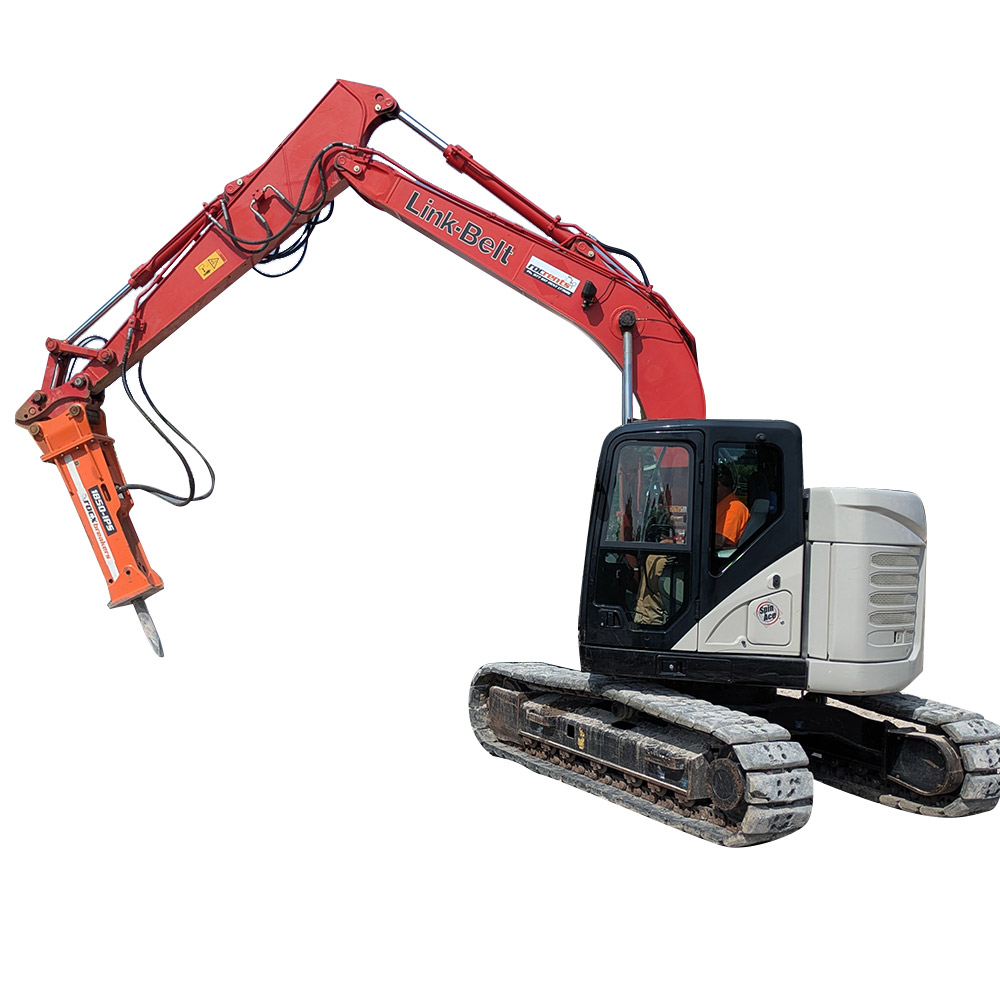

1850IPS Hydraulic Hammer Attachment

COMPACT. PRECISE. POWERFUL.

High-output performance for demanding large-scale jobs.

Rent the 1850IPS Today
Get A Quote
DOWNLOAD SPEC SHEET

OVERVIEW

The RocxBreaker 1850IPS marks the entry into the heavy-class IPS (Integrated Piston System) series. With 3,098 ft-lbs of impact energy and a 100mm (3.937″) tool, it is built for operators who need sustained heavy breaking performance on large excavators in the 11 to 16 ton class.

The IPS design delivers measurably higher energy-per-blow efficiency compared to external-accumulator designs at this weight class, making it the preferred configuration for high-cycle demolition and hard rock production. At 1,898 lbs, the 1850IPS is a serious industrial tool for contractors doing structural demolition, large-scale road and infrastructure work, and quarry operations.

KEY SPECIFICATIONS

Spec

Values

Carrier Size:
11 – 16 ton
Impact Energy:
3,098 ft-lbs
Ideal Applications:
Rock excavation, pipeline trenching, structural demolition.

OVERVIEW

The RocxBreaker 1850IPS marks the entry into the heavy-class IPS (Integrated Piston System) series. With 3,098 ft-lbs of impact energy and a 100mm (3.937″) tool, it is built for operators who need sustained heavy breaking performance on large excavators in the 11 to 16 ton class. The IPS design delivers measurably higher energy-per-blow efficiency compared to external-accumulator designs at this weight class, making it the preferred configuration for high-cycle demolition and hard rock production. At 1,898 lbs, the 1850IPS is a serious industrial tool for contractors doing structural demolition, large-scale road and infrastructure work, and quarry operations.

KEY SPECIFICATIONS

Spec

Values

Carrier Size:
11 – 16 ton
Impact Energy:
3,098 ft-lbs
Ideal Applications:
Rock excavation, pipeline trenching, structural demolition.
  • Compatible with 11–16 ton excavators
  • Engineered for performance under pressure
  • Flow rate: 21–29 GPM
  • 3,098 ft-lb impact energy via IPS integrated piston design
  • 100mm hardened alloy tool with deep retention geometry
  • Reinforced front head with dual retainer pin design
  • Heavy-gauge steel housing with replaceable wear liners
  • Utility trenching and pipe installation
  • Rock excavation and site clearing
  • Structural demolition on construction sites
  • Breaking reinforced concrete elements
  • Large-scale road and highway reconstruction
  • Quarry production breaking and boulder reduction
  • Bridge demolition preparation
  • Serious power for large-scale jobsites
  • Designed for high-output environments
  • Reliable in utilities, infrastructure, and demolition
  • Suitable for 313/315/317 Cat, Link Belt 145, John Deere 135, Volvo ECR145
  • IPS integrated piston system improves energy transfer efficiency per blow versus external-accumulator designs
  • 100mm tool diameter and dual retainer pin front head built for sustained industrial use
